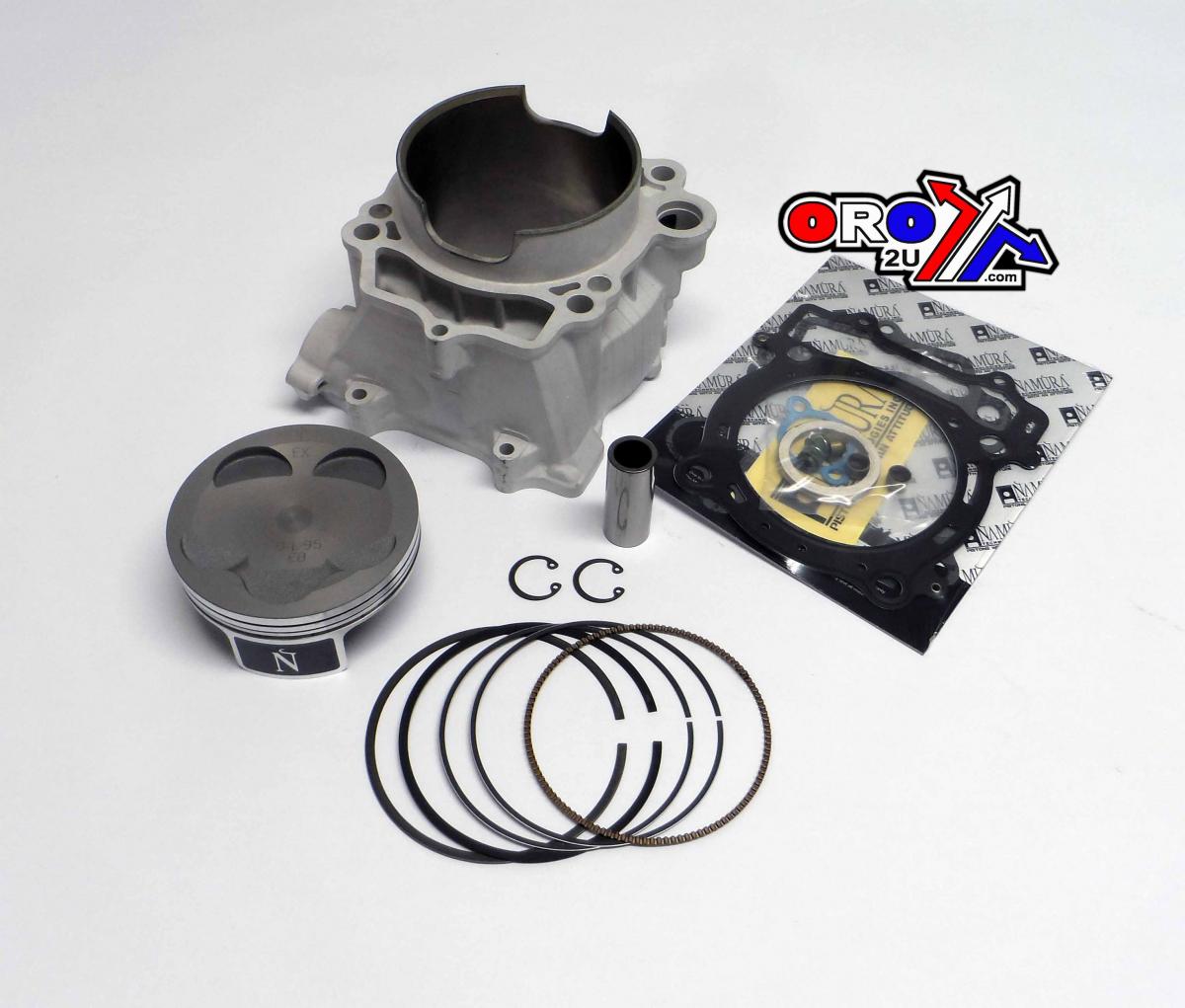

COMPLETE CYLINDER KIT YAMAHA YFZ450 2004-2013

YAMAHA
ATV YFZ450 2004 - 2013,

CYLINDER REBUILD KIT STD BORE 95.00mm. BRONCO AT-09470K

Compression Std 11.4:1, Fitted with Hyperdryve racing piston.

- BRAND NEW AND DESIGNED STRICTLY OFF THE OEM SPECIFICATIONS.
- CAST FROM AB4C ALUMINIUM WITH NIKASIL PLATED SLEEVES.
- PSYCHIC CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET.
- MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.

- Sleeve. Nikasil.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminium, hardness   HR65up.

Part No. 56-K133.95.KIT

Cross reference numbers.
ATHENA 98mm P400485100016,
Note. Replacement Parts. Piston NA-40009H HYPERDRYVE, Top End gasket set NA-40009-BHK
