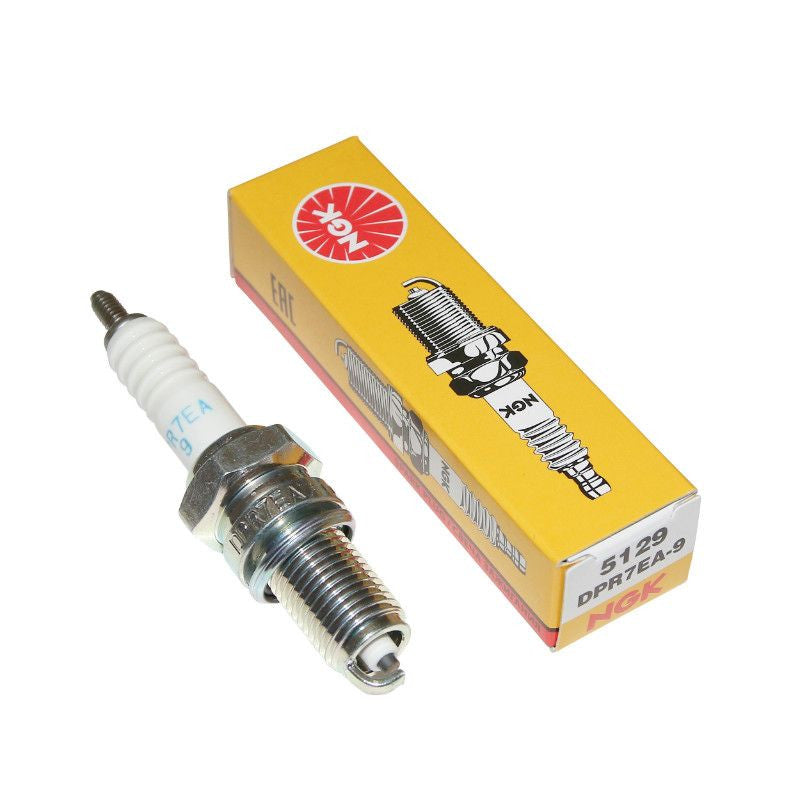

NGK SPARK PLUG DPR7EA-9 5129

NGK Spark Plug - DPR7EA9

Product Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.
• Copper dissipates heat quicker, cooling the electrode and insulator tip.
• Raised pre-ignition rating with high-conduction copper and long nose insulator.
• Meets the requirements of high-performance engines.
• Sold individually.

Specifications:

• Heat Range: 7
• Thread Size: 12 mm
• Type: Resistor
• Units: Each
• Weight: 0.12 lbs
• Alternate/OEM Part Numbers: 5129, DPR7EA9

Compatible Vehicles:

Arctic Cat Models:

• 250 2x4: 2006–2009
• 250 DVX: 2006–2008
• 300 DVX: 2009–2015
• 300 Utility: 2010–2016

Honda Models:

• CH125 Elite: 1984
• CH150 Elite: 1985, 1987
• CH150D Elite Deluxe: 1985–1986
• CRF150F: 2003–2005
• GL1500 Gold Wing: 1988–1990
• GL1500A Gold Wing Aspencade: 1992–2000
• GL1500C Valkyrie: 1997–2000
• GL1500CD Valkyrie: 2001–2003
• GL1500CF Valkyrie Interstate: 1999–2001
• GL1500CT Valkyrie Tourer: 1997–2000
• GL1500I Gold Wing Interstate: 1993–1996

Part Number: 37-DPR7EA-9

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.
• Corrugated ribs prevent flashover.
• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.
• Copper core aids in heat removal and improves durability.
• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm
• Reach: 19 mm (3/4")
• Hex Size: 11/16" (18 mm)
• Seat Type: Gasket
• Type: Resistor
• Terminal Type: Stud Threads
• Projected Tip: Yes
• Gap: .035" (0.9 mm)
• Heat Range: 7
