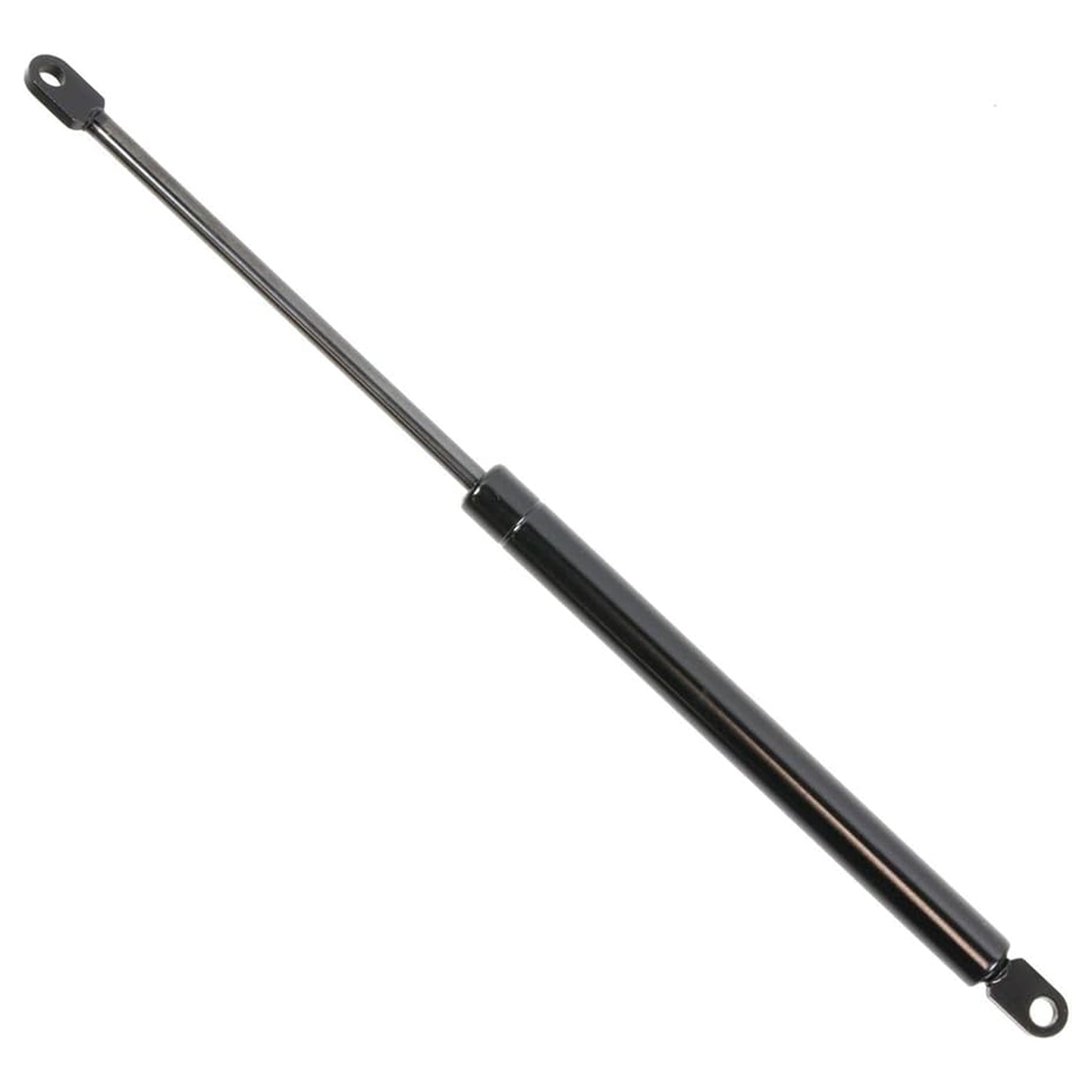

REAR BOOT DAMPER POLARIS SPORTSMAN 500/850 04-18, BRONCO AT-04901

POLARIS
ATP 330 4X4 2004-2005
ATP 500 4X4 2004-2005
SPORTSMAN X2 500 EFI 2006-2009
SPORTSMAN X2 550 2010-2014
SPORTSMAN 570 EFI UTE 2014-2017
SPORTSMAN 570 EFI X2 EPS � ALL 2015-2018
SPORTSMAN X2 700 EFI 2008
SPORTSMAN X2 800 EFI 2007-2009
SPORTSMAN X2 850 2011
BIG BOSS 6X6 2002
SPORTSMAN 6X6 2002-2008

SHOCK DUMP BOX. � BRONCO AT-04901 � � �

Exteneded Length (C to C) 392mm
Closed length. 238mm �
Stroke 153mm
Shaft Dia. 8mm �
Tube Dia. 18mm
Damper Force 26KGS
Top & Bottom Eyelet. OD. 8mm x Wide 12mm

S45C(shaft) + Zinc alloy (hook) + STKM 12C(tube) � � � � � � � � �
Nitrogen treatment(shaft) + Black coating (tube) � � � � � � � �

Cross Reference Numbers Only:
AT-04901 , � 7041301, 7041725, 7042268
