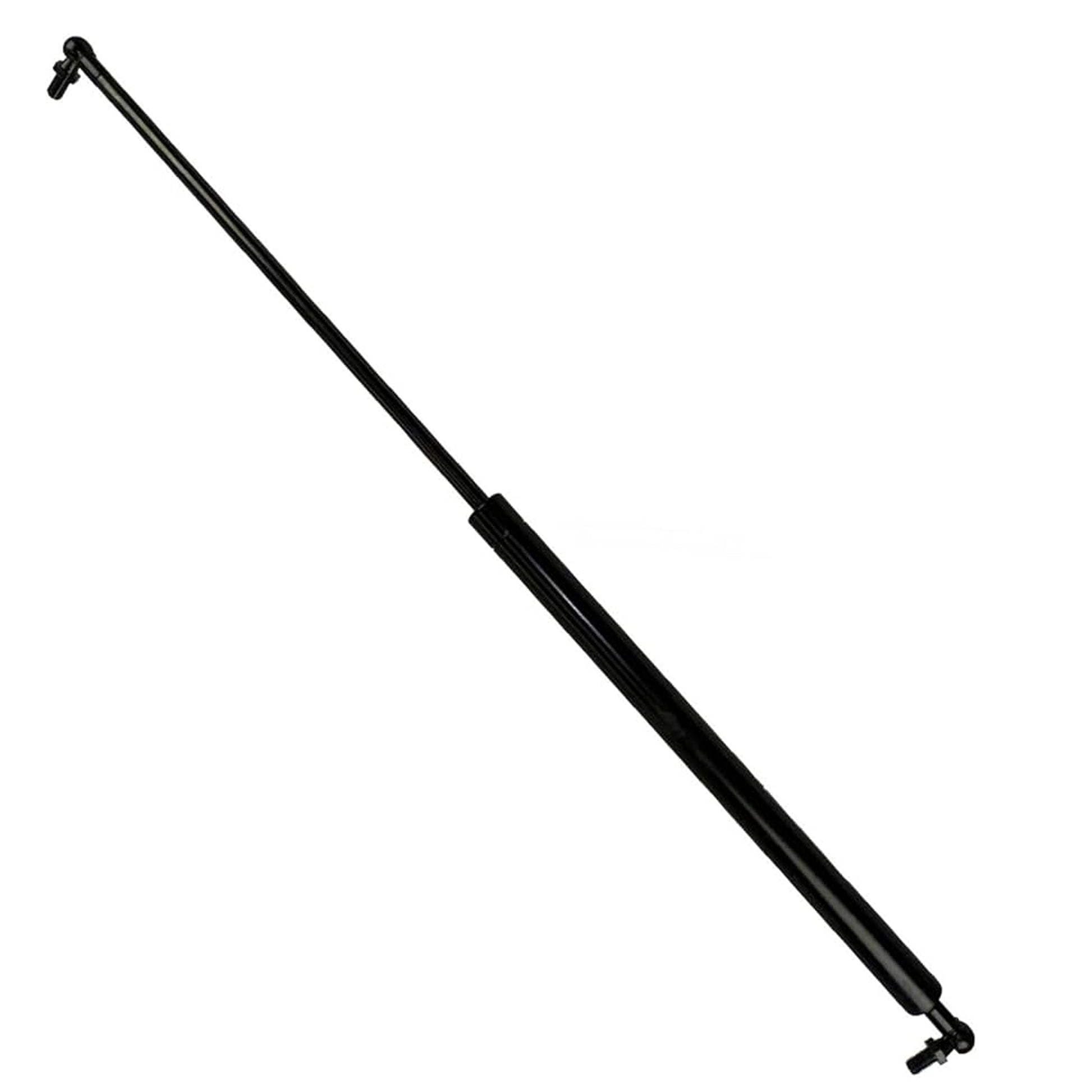

REAR BOOT DAMPER HONDA SXS1000 16-23, BRONCO AT-04913, 74820-HL4-A51

HONDA UTV
PIONEER 1000 2016-2019,

SHOCK DUMP BOX. � BRONCO AT-04913

Exteneded Length (C to C) 665mm
Closed length. 371mm �
Stroke 294mm
Shaft Dia. 10mm �
Tube Dia. 22.1mm
Damper Force 58KGS
BALL SOCKET THREADS 8mm
BALL SOCKET LENGTH 13mm

S45C(shaft) + Zinc alloy (hook) + STKM 12C(tube) � � � � � � � � �
Nitrogen treatment(shaft) + Black coating (tube) � � � � � � � �

Cross Reference Numbers Only:
BRONCO AT-04913, 74820-HL4-A51,

�
