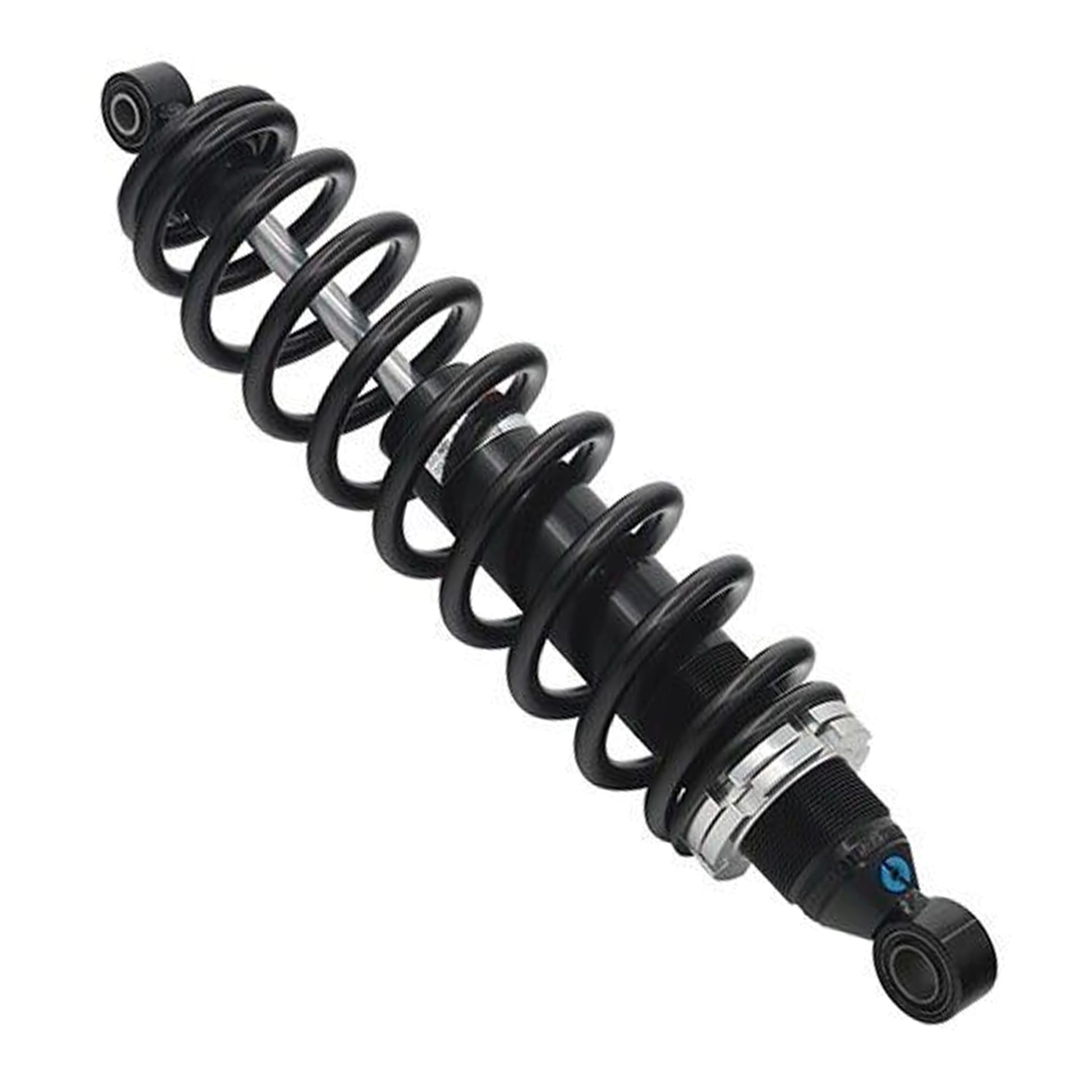

FRONT SHOCK/REAR ARCTIC CAT 400-700 07-18, BRONCO AU-04456

BRONCO HEAVY DUTY GAS SHOCKS AU-04456 ARCTIC CAT

Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
10% stiffer springs provide a better ride and higher load capacity.
Works great on the front when installing a snow plow.
Smooth black color blends perfectly with any OEM ATV.
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
Sold individually – Includes one shock, with spring, and spring retainers.

FRONT FITMENT

• 400 AUTO/MANUAL 4X4 FIS (2007-2008)
• 500 AUTO/MANUAL 4X4 FIS (2007-2009)
• 650 H1 AUTO 4X4 FIS / MUD PRO (2007-2010)
• 700 EFI AUTO 4X4 FIS (2007-2008)
• 700 MUD PRO (2012-2017)
• 700 ALTERRA MUD PRO (2018)
• 700 ALTERRA TRV MUD PRO (2018)

REAR FITMENT

• 400 AUTO/MANUAL 4X4 FIS (2007-2008)
• 500 AUTO/MANUAL 4X4 FIS (2007-2009)
• 650 H1 AUTO 4X4 FIS / MUD PRO (2007-2010)
• 700 EFI AUTO 4X4 FIS (2007-2008)
• 700 MUD PRO (2012-2017)
• 700 ALTERRA MUD PRO (2018)
• 700 ALTERRA TRV MUD PRO (2018)

SPECIFICATIONS

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 20.5
• Bottom Hole I.D (mm): 16
• Bottom Eyelet Width (mm): 20.5
• Tube O.D (mm): 41
• Stroke (mm): 107
• Spring O.D (mm): 82
• Spring Wire Diameter (mm): 9.8
• Spring Rate (lbs/inch): 95/180
• Spring Rate (kg/mm): 2.9
• Center to Center (mm): 389
• Center to Center (inches): 15 1/3
