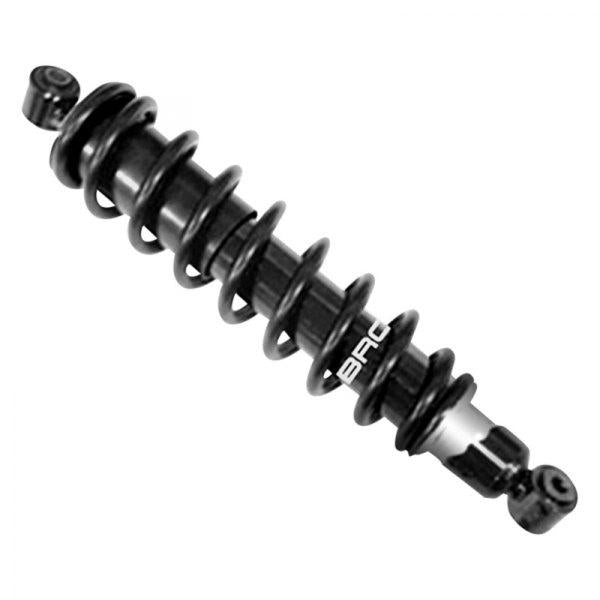

REAR SHOCK BRONCO KAWASAKI KVF650/750 BRUTE FORCE 05-20, AU-04407

BRONCO HEAVY DUTY GAS SHOCKS

Bronco gas shocks offer long-term consistent performance compared to stock oil-only damped shocks. Key features include:

• 10% Stiffer Springs: Provide a better ride and increased load capacity.
• Versatile Application: Works well on the front when installing a snow plow.
• Aesthetic Appeal: Smooth black color blends perfectly with any OEM ATV.
• Direct Bolt-On Replacement: Pre-installed spring allows for immediate installation right out of the box.
• Sold Individually: Each purchase includes one shock, with spring and spring retainers.

FITMENT:

Kawasaki:

• KVF650i Brute Force 4x4 (non-piggy back) (2006-2013)
• KVF750i Brute Force 750 4x4 (2005-2020)
• KVF750i Brute Force 750 4x4 EPS (2012-2020)

SPECIFICATIONS:

• Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 30
• Tube O.D (mm): 39
• Stroke (mm): 68.9
• Spring O.D (mm): 73
• Spring Wire Diameter (mm): 9.7
• Center to Center (mm): 350
• Center to Center (in): 13.9

Part No.: 29-559.EA )
Bronco Rear Shock Model: 04407
