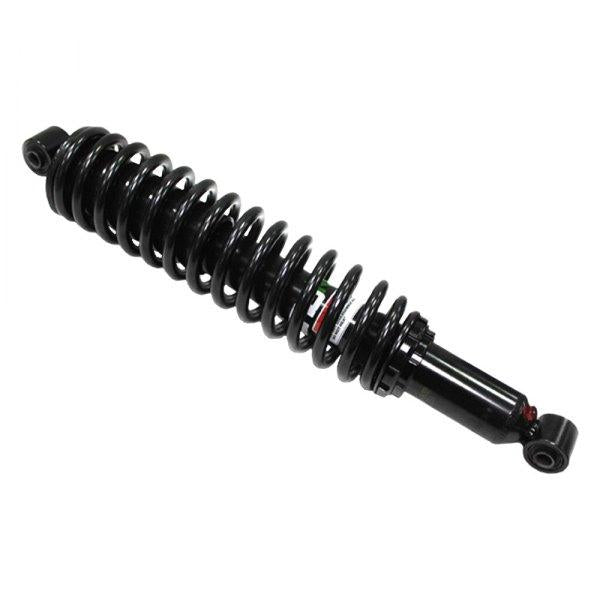

FRONT SHOCK 402mm, YAMAHA YXR660 Rhino 04-07, AU-04309, BRONCO

FITMENT:

• YAMAHA RHINO 450 2006-2009
• YAMAHA RHINO 660 2004-2007 9 (STD SUSPENSION ONLY, NOT SPORT)
• YAMAHA RHINO 700 2008-2013


�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 39
• STROKE MM: 93

• SPRING OD MM: 74

• SPRING WIRE DIAMETER MM: 9

• SPRING RATE LBS/INCH: 238

• SPRING RATE KG/MM: 4.25

• CENTER TO CENTER MM: 402

• CENTER TO CENTER IN: 15 5/6


�
