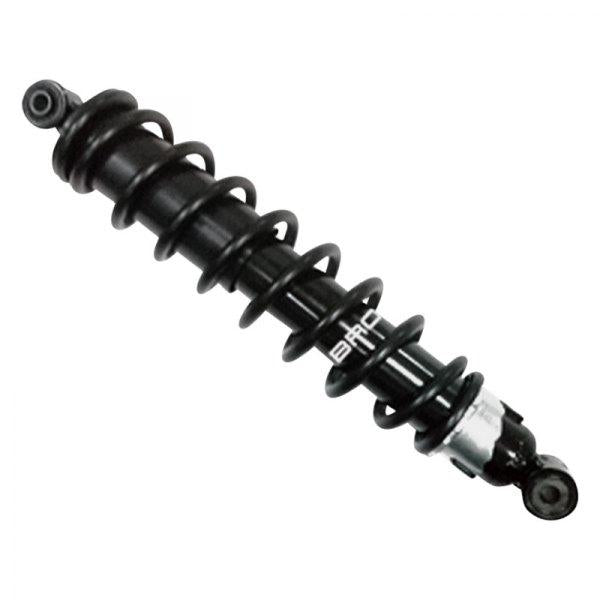

SHOCK FRONT BRUTE FORCE 45014-0203, 45014-0075, KVF750

FITMENT:

• KAWASAKI KVF650i BRUTE FORCE 4X4 (NON PIGGY BACK) 2006-2013
• KAWASAKI KVF750i BRUTE FORCE 4X4 2005-2020
• KAWASAKI KVF750 BRUTE FORCE 4X4 EPS 2012-2020


�

SPECIFICATIONS �

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 30

• TUBE O.D MM: 38
• STROKE MM: 64.8

• SPRING OD MM: 73

• SPRING WIRE DIAMETER MM: 9

• SPRING RATE LBS/INCH: -

• SPRING RATE KG/MM: -

• CENTER TO CENTER MM: 360

• CENTER TO CENTER IN: 14 1/6


�
